Extension Tubes & Hoses

Extension tubes, hoses and couplings

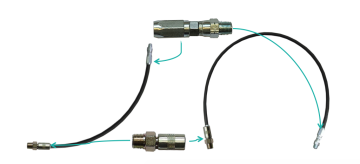

Extension hoses

Extension hoses are used to create a flexible connection between a needle nozzles or hydraulic couplers to a grease gun. The extension hoses are produced from highly flexible high pressure hose with a minimum bending radius of 20 mm, and maximum burst pressure of 800 bar. One end is fitted with a 1/8 NPT(m) swivel coupling, the other side with a fixed 1/8 NPT(m). Standard hoses are 18” and 36”, any other required length can be delivered at request. These flexible hoses allow you to have easy access to these difficult to reach lubrication points, the swivel coupling avoids twisting forces on the hose increasing the hose lifespan.

Extension hoses

Extension hose 71518X

71518X, length 18”, ᴓ 8,6 mm, bending radius 20 mm, maximum pressure 800 bar, connection 2 x 1/8 NPT (m) couplings of which 1 swivel. Swivel also available as 1/8 BSP

Extension hose 71536X

71518X, length 18”, ᴓ 8,6 mm, bending radius 20 mm, maximum pressure 800 bar, connection 2 x 1/8 NPT (m) couplings of which 1 swivel. Swivel also available as 1/8 BSP

Extension tubes

Extension tube short 30˚ 62028X

Extension tube short, 30˚ angle, length 6”, ᴓ 10 mm, connection 1/8 NPT(m)

Extension tube short 67020X

Extension tube short, straight, length 6”, ᴓ 10 mm, connection 2 x 1/8 NPT(m)

Extension tube long 30˚ 62061X

Extension tube long, 30˚ angle, length 12”, ᴓ 10 mm, connection 1/8 NPT(m), different angles available at request

Couplers

Quick coupler 81980

Quick coupler or locking sleeve to easily connect the extension tube to a grease gun with a hydraulic coupler.

Coupler 67063

Coupler 2 x 1/8 NPT (f).
To connect two extension tubes or an extension tube and a hose.
